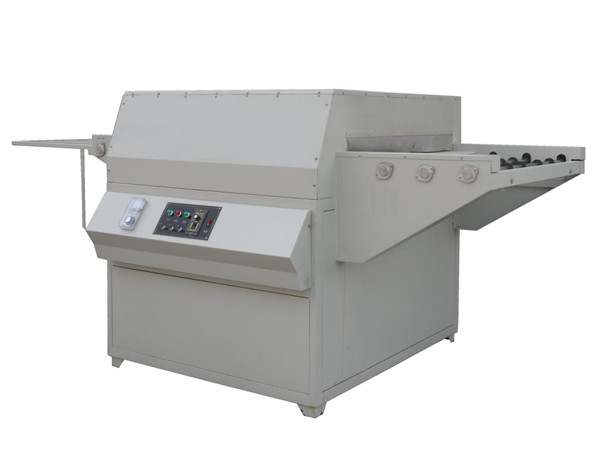

HK型臥式烤版機
HK Horizontal Plate Baking Machine
》產品介紹：
該機適合于烘烤預制感光PS版，經烘烤后的預制感光版耐印率可提高2到3倍以上，維修采用抽屜式。
》性能特點：
·該機采用遠紅外加熱方式，烘道內溫度均勻，能量低；
·本機采用版材移動方式烤版，可持續烘烤版材；
·版材傳輸速度和烤版溫度可任意調整、調溫。
》規格型號及參數（特殊規格可定做）
Model and technical specification (Special specifications can be customized):
（見表格）
Product Introduction:
The machine is suitable for baking prefabricated photosensitive PS plate, and the printing sensitivity of the prefabricated photosensitive plate can be increased by more than 2 to 3 times after being baked, and the drawer type is adopted for maintenance.
Performance Characteristics:
·The machine adopts far infrared heating mode, the temperature is uniform and the energy is low in the drying tunnel;
·This machine adopts the plate type movable way baking plate, the sustainable baking plate material;
·The speed of plate transmission and the temperature of baking plate can be adjusted and adjusted at any time.
機型 Model HK880型 HK1120型 溫控范圍 Baking Temperature 230-250℃ 230-250℃ 有效烤版寬度 Max.Width 800mm 1120mm 烤版時間 Baking Time 5-10min 5-10min 加熱功率 Heating Power 8.5KW 11.5KW 凈重 Net Weight 350Kg 450Kg 外形尺寸 Outline Dimension 2590×1100×1200mm 2590×1100×1200mm
